Oxygen Therapy in Canine Heart Disease: The Science of the Diffusion Barrier and the Transition to Home Care

In congestive heart failure (CHF), few interventions feel as immediately life-saving as oxygen. When a dog is struggling to breathe, giving oxygen is instinctive, and often correct.

But here’s the problem: Once that crisis has passed, more oxygen is not always better, and may not help at all.

As home oxygen therapy becomes more common, especially in North America, this raises an important question:

When does oxygen actually help, and when are we just treating anxiety rather than physiology?

The Physics of Breathing: Fick’s Law and the Alveolar-Capillary ‘Interface’

At its core, breathing is a matter of diffusion. Oxygen has to cross from the air sacs of the lungs into the bloodstream. Carbon dioxide makes the reverse journey.

Oxygen must move from the alveolar air space, across a delicate membrane, and into the pulmonary capillary blood. This process is governed by Fick’s Law of Diffusion:

Fick’s Law:
The rate of gas transfer is proportional to the surface area of the membrane and the pressure gradient of the gas, but inversely proportional to the thickness of the barrier.

In simple terms, oxygen transfer depends on three things:

• How much lung surface is available
• How thick the barrier is
• And the pressure pushing oxygen across

In a healthy dog lung, the barrier is incredibly thin: typically only 0.2 to 0.6 micrometres. This allows room air (21 per cent oxygen) to easily saturate the blood. However, in left-sided heart failure, rising pressures in the left atrium lead to fluid leaking into the lung interstitium and alveoli. This creates “pulmonary oedema,” which effectively thickens the diffusion barrier.

In other words, the problem isn’t a lack of oxygen - it’s that oxygen can’t get through the fluid barrier.

The Alveolar Gas Equation

To overcome this thickened barrier, we must increase the pressure gradient. We do this by increasing the partial pressure of the oxygen breathed in. We can’t safely change the overall pressure, but we can increase the oxygen percentage. Known as the ‘Fraction of Inspired Oxygen’ (FiO2).

You can estimate this using the alveolar gas equation but the key takeaway is simple:

Increasing FiO₂ dramatically increases the “push” of oxygen into the blood.

This stronger pressure gradient helps oxygen cross fluid-filled lungs, buying the patient critical time.

You can use the Alveolar Gas Equation to estimate the partial pressure of oxygen in the alveoli (PAO2)

P_AO₂ = (P_atm − P_H2O) × FiO₂ − P_aCO₂ / RQ

Where Patm is atmospheric pressure (760 mmHg), PH2O is water vapour pressure (47 mmHg), PaCO2 is arterial carbon dioxide, and RQ is the respiratory quotient (typically 0.8).

This increased “push” forces oxygen across the oedematous fluid and into the circulation, buying the patient critical time.

However, at this point, we step in with phase 2 to solve the problem: diuretics. Diuretics work to clear the congestion, and reduce the thickness of the barrier again.

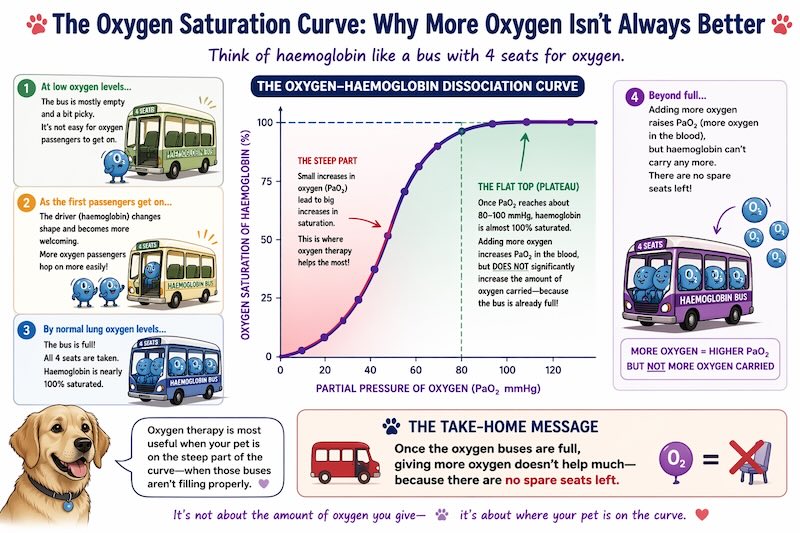

The Sigmoid Curve: Why More is Not Always Better

A common misconception among pet owners (and sometimes clinicians) is that if a little oxygen is good, more must be better. This logic fails because of the unique way haemoglobin carries oxygen, described by the oxyhaemoglobin dissociation curve.

Haemoglobin molecules exhibit “cooperative binding.” As each oxygen molecule binds to one of the four sites on a haemoglobin protein, the protein changes shape, making it easier for the next oxygen molecule to bind. This creates a characteristic S-shaped (sigmoid) curve.

The curve has a flat upper plateau. Once the PaO2 reaches approximately 80 to 100 mmHg, the haemoglobin is nearly 100 per cent saturated. Beyond this point, increasing the inspired oxygen (FiO2) further will raise the PaO2 in the blood, but it cannot significantly increase the amount of oxygen carried because the haemoglobin “shuttle” is already full.

So increasing oxygen at this stage changes the numbers on a blood gas, but not the oxygen delivery to tissues in any meaningful way.

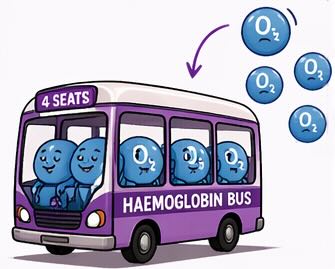

Think of haemoglobin like a bus with a limited number of seats for oxygen. In haemoglobin’s case, its only 4.

At the start of the journey (low oxygen levels), the bus is quite empty and a bit “picky” - it’s not that easy for oxygen passengers to get on.

But once the first passenger gets on, the driver becomes more welcoming. The next passengers hop on more easily, and soon the bus fills up quickly.

By the time we reach normal oxygen levels in the lungs, the bus is completely full.

Now here’s the important bit:

👉 Once all four seats are taken, adding more oxygen doesn’t add more passengers - there’s simply nowhere for them to sit.

So even if we give extra oxygen:

• The blood oxygen pressure (PaO₂) goes up
• But the actual oxygen carried barely increases

The Oxygen Content Equation

There are actually two ways oxygen travels in the blood:

• Most of it sits on haemoglobin, like passengers on a bus.
• A tiny amount just dissolves in the blood, like a few people jogging alongside the bus.

Even if we give lots of extra oxygen, we don’t create more seats on the bus. We just get a few more ‘joggers’ alongside and that’s a very small number.”

In science terms, for every 1 mmHg increase in pressure, only 0.003 ml of oxygen dissolves in 100 ml of blood.

If a dog is already at 98 per cent saturation on room air, providing 100 per cent oxygen will raise their PaO2 from 100 mmHg to 500 mmHg.

Sounds dramatic - but in reality, it only adds a tiny amount of extra oxygen. It’s like trying to move more people by asking them to run next to the bus instead of adding more seats - it barely makes a difference.

The “Wet Lung” vs. “Dry Lung” Argument

The most important clinical takeaway is that the need for supplemental oxygen is transient. Once loop diuretics - such as furosemide or torsemide - begin to work, they reduce the intravascular volume and clear the alveolar fluid.

Oxygen treats the symptom. Diuretics treat the cause.

As the lungs “dry out,” the diffusion distance normalises and oxygen can once again move easily on room air.

At this point, the high pressure gradient provided by supplemental oxygen is no longer required because room air is once again sufficient to maintain an arterial oxygen saturation (SpO2) of 94 to 100 per cent. This is why many clinicians argue that a stable Stage C patient, well-controlled on medication, has no physiological need for oxygen at home.

Home Oxygen Therapy: An International Perspective

Despite the physiological return to room air, the use of home oxygen equipment is rising globally. This trend is driven by a combination of technological advancement, owner anxiety, and different regulatory frameworks.

So if oxygen is often unnecessary once the lungs are “dry,” why is home oxygen becoming more popular?

The Clinical Crossroads: When is Home Oxygen Justified?

We can identify three specific scenarios where home oxygen moves from “marketing fluff” to a valid clinical tool:

1. The Rescue and Transport Kit: For owners who live far from an emergency centre, portable oxygen canisters (e.g., Pawprint Oxygen) can provide 15 to 30 minutes of support. This reduces the risk of a fatal desaturation during the stressful drive to the clinic.



2. The Stage D Palliative Case: When a dog reaches refractory heart failure (Stage D) and can no longer be kept “dry” with standard diuretics, supplemental oxygen may improve their quality of life by reducing the work of breathing in their final days or weeks.



3. High-Risk Brachycephalics: In dogs with concurrent airway disease (like tracheal collapse or laryngeal paralysis), oxygen can help manage acute bouts of respiratory distress that exacerbate their underlying cardiac condition.

Summary: Monitoring is Still the Gold Standard

Regardless of whether a home includes an oxygen concentrator, the most effective monitoring tool remains the Sleeping Respiratory Rate (SRR).

If pet parents understand that a rising respiratory rate (consistently over 30 breaths per minute) is an early warning of a “wet lung”, its really important to act eary and counteract this with diuretics. While oxygen may mask the symptoms, only the correct adjustment of diuretics can treat the cause.
